ASRock Z890 LiveMixer WiFi

₨90,000.00

Product Highlights

The Z890 LiveMixer WiFi motherboard delivers superb productivity with PCIe Gen5, dual-channel DDR5, and Thunderbolt™ 4 support. It offers rock-solid durability with server-grade low-loss PCB and an 18+1+1+1+1 power phase. Experience ultrafast connectivity with 2.5G LAN, Wi-Fi 7, and lightning-fast ports. Enhanced with EZ update features and troubleshooting tools, it’s perfect for high-performance computing needs.

Category Motherboards

Description

Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851)
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC)
1 PCIe 5.0 x16, 2 PCIe 4.0 x16
Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
14 USB 3.2 Gen1 (10 Rear, 4 Front)
4 USB 2.0 (Front)
Realtek 2.5G LAN
802.11be Wi-Fi 7 + Bluetooth
Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

Specs

Key Features:

CPU Support:
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT)
- Integrated NPU for AI acceleration
Chipset:
- Intel® Z890
Memory:
- Dual Channel DDR5 Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+ (OC)
- Max system memory capacity: 256GB
Graphics:
- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 (supports 4K 120Hz)
- 2 x Thunderbolt™ 4 (supports up to 8K 60Hz / 5K 120Hz)
Audio:
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Nahimic Audio
- Impedance Sensing and individual PCB Layers for R/L Audio
LAN:
- 2.5 Gigabit LAN (Dragon RTL8125BG)
- Dragon 2.5G LAN Software
Wireless LAN:
- 802.11be 2×2 Wi-Fi 7 Module
- Supports Bluetooth 5.4
- MU-MIMO Technology
Slots:
- 1 x PCIe 5.0 x16 Slot (PCIE1)
- 2 x PCIe 4.0 x16 Slots (PCIE2, PCIE3)
- 1 x M.2 Socket (Key E)
Storage:
- 1 x PCIe Gen5x4 (128 Gb/s) M.2 Slot
- 1 x PCIe Gen4x4 (64 Gb/s) M.2 Slot
- 4 x SATA3 6.0 Gb/s Connectors
USB Ports:
- 2 x Thunderbolt™ 4 Type-C
- 1 x USB 3.2 Gen2x2 Type-C
- 14 x USB 3.2 Gen1 (10 Rear, 4 Front)
- 4 x USB 2.0 (Front)
Connectors:
- 3 x Addressable LED Headers
- 5 x Chassis Fan Connectors (4-pin)
- 1 x AIO Pump Fan Connector

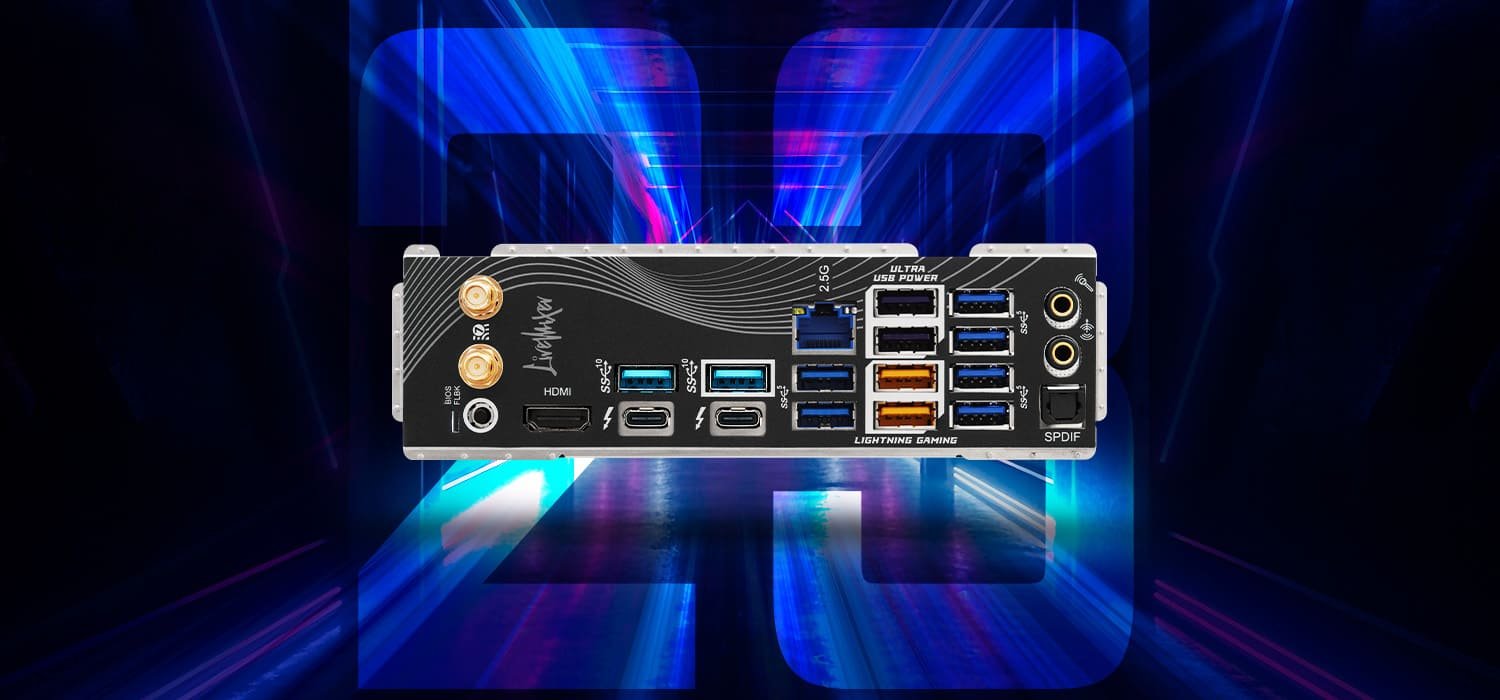

Rear Panel I/O:
- 2 x Antenna Ports
- 1 x HDMI Port
- 2 x USB 3.2 Gen2 Type-A Ports
- 10 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
Software & UEFI:
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock EZ Mode, Full HD UEFI
Form Factor:
- ATX (12.0-in x 9.6-in)
Operating System:
- Microsoft Windows® 11 64-bit
