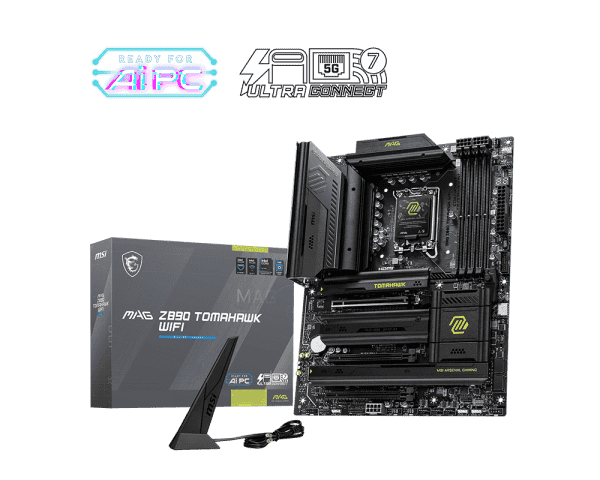

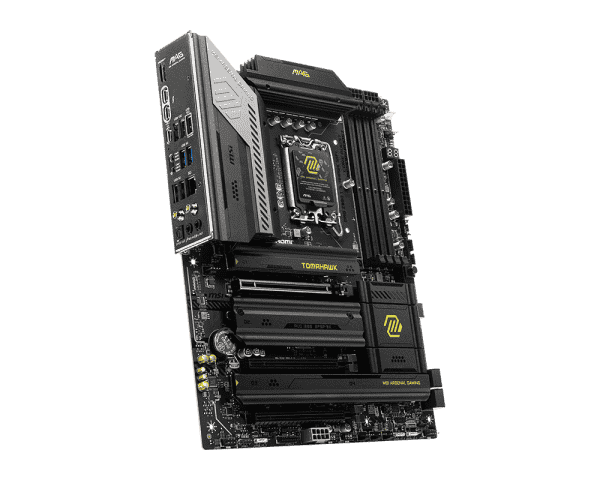

MSI MAG Z890 TOMAHAWK WIFI

Specs

Chipset

• INTEL Z890

CPU

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support:
  • 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 9200+ MT/s
    • 1DPC 2R Max speed up to 7200+ MT/s
    • 2DPC 1R Max speed up to 4800+ MT/s
    • 2DPC 2R Max speed up to 4800+ MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

The DIMM slots on this motherboard only have single-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, refer to the Memory Compatibility List on the product’s Support page.

Onboard Graphics

• 1x HDMI™
  • Supports HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
• 2x Type-C DisplayPort
  • Thunderbolt™ 4 ports supporting DisplayPort 2.1 with UHBR20 over USB Type-C
  • Maximum resolution: 4K@120Hz / 8K@60Hz*

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slots

• 3x PCI-E x16 slots:
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

• Realtek® ALC1220P Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

Storage

• 4x M.2 slots:
  • M.2_1 Source (From CPU) supports PCIe 5.0 x4, 2280/2260 devices
  • M.2_2 Source (From CPU) supports PCIe 4.0 x4, 22110/2280/2260 devices
  • M.2_3 Source (From Chipset) supports PCIe 4.0 x4, 2280/2260/2242 devices
  • M.2_4 Source (From Chipset) supports PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices
• 4x SATA 6G

Refer to the manual for M.2 SSD heatsink restrictions.

RAID

• Supports RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices

Onboard Thunderbolt

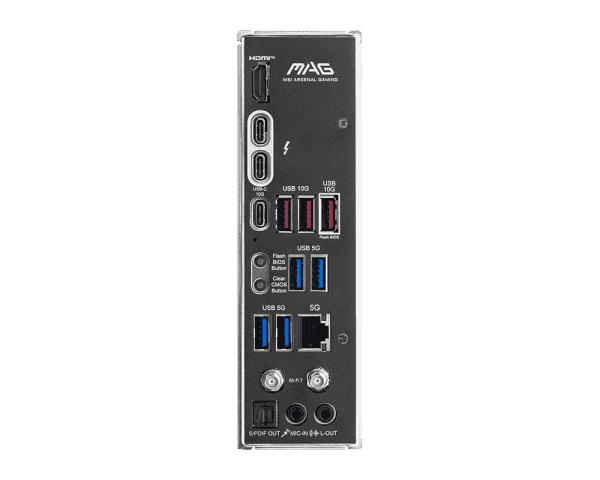

• 2x Thunderbolt4 ports (Rear):
  • Up to 40Gbps transfer rate with Thunderbolt devices
  • Up to 20Gbps transfer rate with USB4 devices
  • Up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A, 15W power charging
  • Daisy-chain support for up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display

USB

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

USB 20Gbps Type-C (Front) supports USB PD 27W fast charging for JUSBC1.

LAN

• Intel® Killer™ E5000 5Gbps LAN

Internal IO

• 1x Thunderbolt5 card connector (JTBT5, support RTD3)
• 1x Power Connector (ATX_PWR)
• 2x Power Connector (CPU_PWR)
• 1x Power Connector (PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 6x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 3x Addressable V2 RGB LED connectors (JARGB_V2)
• 1x RGB LED connector (JRGB)
• 1x TPM pin header (Support TPM 2.0)

Wireless LAN & Bluetooth

• Intel® Killer™ BE1750x Wi-Fi 7
• MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/b/g/n/ac/ax/be
• Bluetooth® 5.4**, MLO, 4KQAM

6GHz band support may depend on regional regulations and requires Windows 11 SV3.

LED Feature

• 4x EZ Debug LED
• 1x EZ Digit Debug LED

PCB Info

• ATX, 243.84mm x 304.8mm

Operating System

• Support for Windows® 11 64-bit
